API Keys provide secure programmatic access to UTMStack’s API endpoints. This guide walks you through creating, managing, and using API keys for authentication.
API Keys are an alternative authentication method to user credentials, ideal for integrations, automation scripts, and third-party applications.

​
Accessing API Keys Management

1

Navigate to Settings

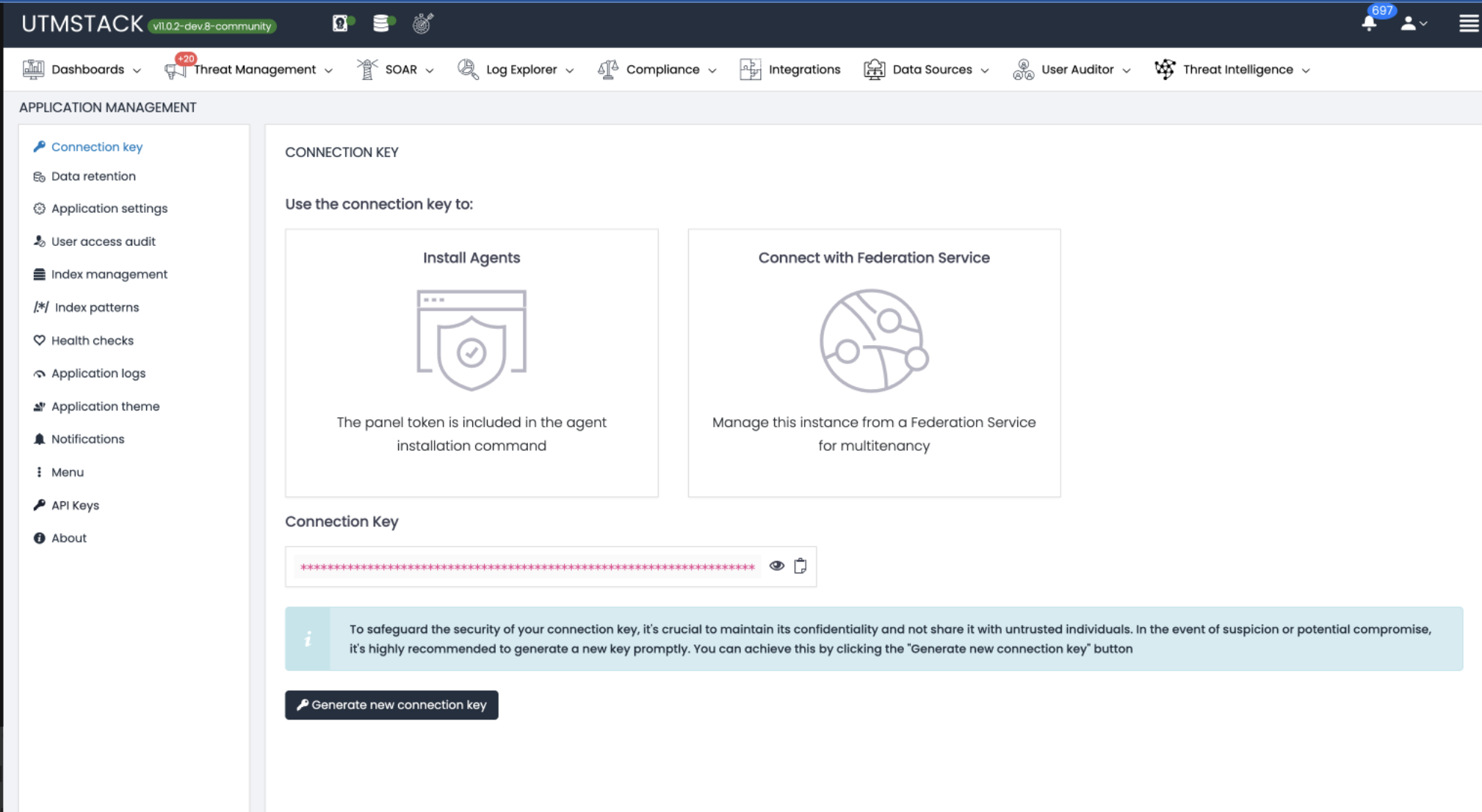

From the UTMStack main interface, click on the Settings menu in the left sidebar.API Keys Management Page
2

Open Connection Keys Section

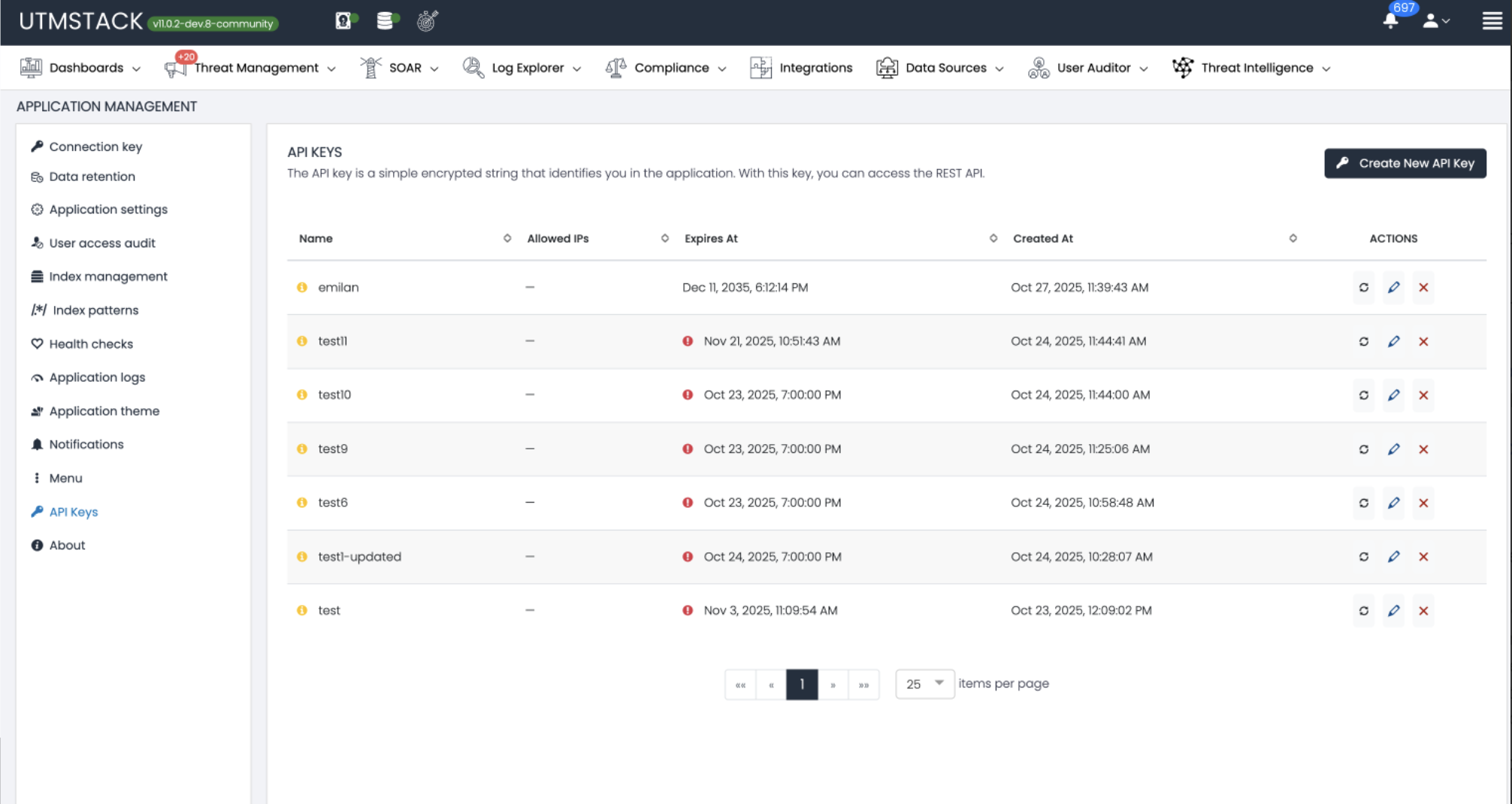

Select Connection Keys from the settings menu to access the Connection Keys management page.API Keys Management PageThe API Keys page displays a table with:
  • Name: Descriptive name of the API key
  • Created At: Timestamp when the key was created
  • Expires At: Expiration date and time
  • Status indicators: Red icon for expired or problematic keys, green for active
  • Actions: Icons to view details, regenerate, or delete each key
  • Pagination: Navigate through multiple pages of API keys at the bottom

​
Creating a New API Key

1

Click Create API Key

On the API Keys page, locate and click the Create Api Key button in the top right corner.Create API Key Button
The button is positioned above the API keys table for easy access.
2

Configure API Key Details

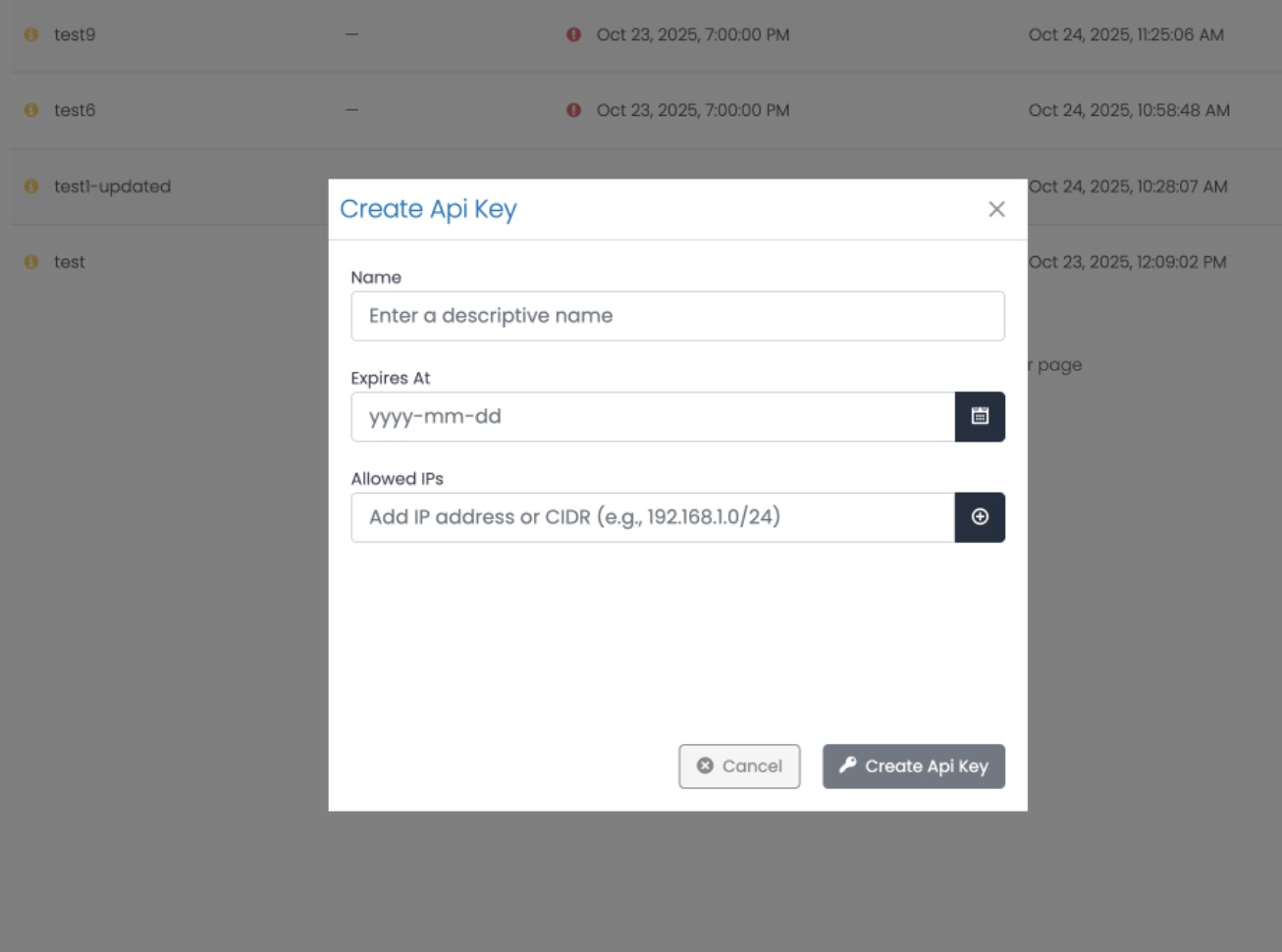

A modal dialog titled “Create Api Key” will appear with the following fields:Create API Key Form

​
Name

Enter a descriptive name for your API key (e.g., “Integration Agent”, “Monitoring Script”, “Test”).
Use clear, descriptive names that indicate the purpose and environment of the key.
3

Set Expiration Date

Click the calendar icon next to “Expires At” to open the date picker.Select a future date when the API key should expire (e.g., 2035-11-01).Best Practices:
  • Set shorter expiration periods for testing or temporary integrations (30-90 days)
  • Use longer periods (e.g., 1 year) for production integrations
  • Regularly rotate API keys before expiration for enhanced security
Expired keys will be automatically disabled and cannot be used for authentication. You’ll need to regenerate them.
4

Configure Allowed IPs (Security)

In the “Allowed IPs” field, add IP addresses or CIDR ranges that are permitted to use this API key.Input Format:
  • Type or paste an IP address or CIDR notation
  • Click the plus icon (⊕) to add it to the allowed list
  • Example placeholder: Add IP address or CIDR (e.g., 192.168.1.0/24)
Format Examples:
  • Single IP: 192.168.1.10
  • CIDR Range: 192.168.1.0/24
  • Multiple entries: Add each IP/CIDR separately by clicking the plus icon
Security Recommendation: Always restrict API keys to specific IP addresses or ranges. The form will show an error message “Please enter an IP address or CIDR” if you try to proceed without adding at least one IP.Avoid leaving this field empty unless absolutely necessary for your use case.
5

Create the API Key

Click the Create API Key button to generate the key.
6

Copy and Secure Your API Key

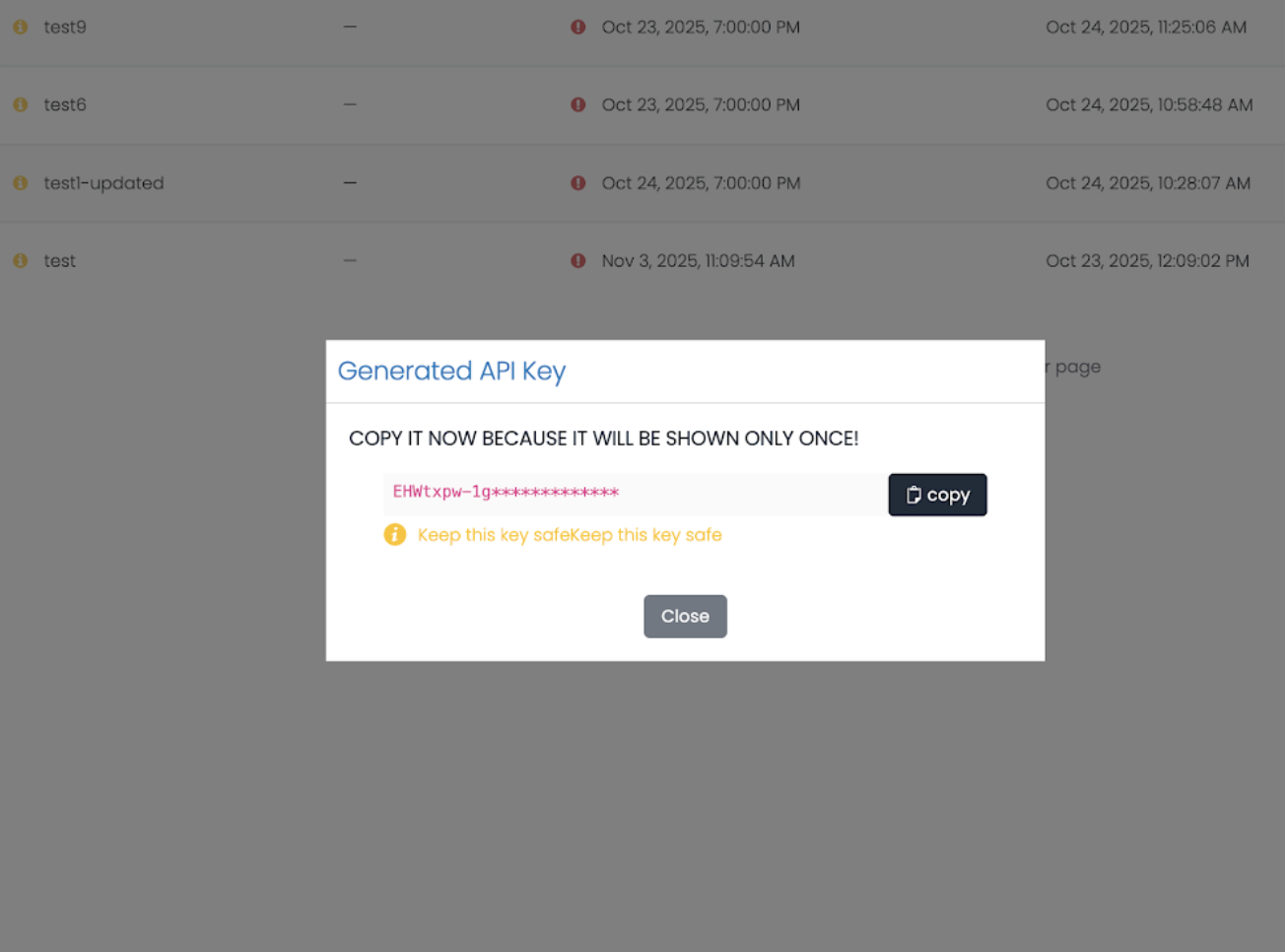

After clicking Create Api Key, a success dialog titled “Generated Api Key” will appear displaying your newly created API key.Generated API KeyThe dialog shows:
  • A message: “COPY YOUR API KEY AS IT WILL BE SHOWN ONLY ONCE”
  • The API key value (partially masked with dots: ••••••••)
  • A Copy button to copy the key to your clipboard
  • A Close button
CRITICAL - READ CAREFULLY: This is the only time you will see the complete API key.Action Required:
  1. Click the Copy button immediately to copy the key to your clipboard
  2. Paste and store it in a secure password manager or secrets vault
  3. You cannot retrieve this key again - if lost, you must regenerate it
  4. Only click Close after you have safely stored the key
Verify that you’ve successfully copied the key by pasting it into a secure location before closing the dialog.

​
Managing Existing API Keys

​
View API Key Details

Click on any API key in the list to view its details:
  • Name
  • Creation date
  • Expiration date
  • Allowed IP addresses
  • Last used timestamp

​
Regenerate an API Key

If an API key is compromised or needs to be rotated:
1

Select the API Key

Find the API key you want to regenerate in the list.
2

Click Regenerate

Click the regenerate icon (circular arrows) next to the API key.
3

Confirm Regeneration

Confirm the action. The old key will be invalidated immediately.
4

Copy New Key

Copy and securely store the newly generated key.
Regenerating an API key immediately invalidates the old key. Update all applications using the old key to prevent authentication failures.

​
Delete an API Key

To permanently remove an API key:
1

Select the API Key

Find the API key you want to delete in the list.
2

Click Delete

Click the delete icon (trash can) next to the API key.
3

Confirm Deletion

Confirm the action. This cannot be undone.
Deleting an API key is permanent and cannot be undone. All applications using this key will immediately lose access.

​
Security Best Practices

Always configure allowed IP addresses or CIDR ranges for each API key. This prevents unauthorized use if a key is compromised.Example:
  • Development: 192.168.1.0/24 (internal network only)
  • Production: 203.0.113.10 (specific server IP)
  • Cloud: Use your cloud provider’s outbound IP ranges
Set appropriate expiration dates based on use case:
  • Testing/Development: 30-90 days
  • Production: 6-12 months
  • Temporary integrations: As short as needed
Regularly rotate keys before expiration.
Never store API keys in:
  • Source code repositories
  • Configuration files committed to version control
  • Plain text files on disk
  • Browser local storage
Secure storage options:
  • Environment variables
  • Secret management services (HashiCorp Vault, AWS Secrets Manager)
  • Encrypted configuration stores
  • Password managers (for manual testing)
Name API keys clearly to indicate their purpose and owner:
  • ✅ “Production-SIEM-Integration-Server-01”
  • ✅ “Dev-Testing-John-Temp”
  • ✅ “Monitoring-Script-Nagios”
  • ❌ “Test”
  • ❌ “Key1”
Regularly review:
  • Active API keys and their purpose
  • Last used timestamps
  • Keys approaching expiration
  • Unused or forgotten keys (delete them)
Set up alerts for:
  • Failed authentication attempts
  • Keys used from unexpected IP addresses
  • Keys approaching expiration
Create separate API keys for different purposes:
  • One key per application/integration
  • One key per environment (dev, staging, production)
  • Different keys for different teams
This limits the impact if a single key is compromised.
If you suspect a key has been compromised:
  1. Immediately regenerate or delete it
  2. Review access logs for suspicious activity
  3. Update all legitimate applications with the new key
  4. Investigate the potential security incident

​
API Key Lifecycle Management

1

Create Key with Clear Purpose

Define why you need the key and document its intended use.
2

Configure Security Settings

  • Set appropriate expiration date
  • Add allowed IP restrictions
  • Use descriptive name
3

Securely Distribute

Store the key in a secure location and share only with authorized personnel through secure channels.
4

Monitor Usage

Regularly check when the key was last used and from which IPs.
5

Rotate Before Expiration

Create a new key and update applications before the old one expires.
6

Revoke Old Key

After successfully transitioning to the new key, delete or let the old key expire.
For enterprise support with API integrations or custom development, contact the UTMStack support team at support@utmstack.com
