This integration requires a UTMStack agent to work properly. Please, make sure you have installed it before you continue.
High Availability Proxy is an open source proxy and load balancer. It is frequently used to improve server performance and reliability by distributing the workload across multiple servers. With a variety of advanced features, such as SSL support, real-time monitoring, and traffic compression, HAProxy has become a standard choice for highly available, high-traffic system needs.

​
1. Enable Filebeat module

Linux
cd /opt/utmstack-linux-agent/beats/filebeat/ && ./filebeat modules enable haproxy
Windows
cd "C:\Program Files\UTMStack\UTMStack Agent\beats\filebeat\" && filebeat modules enable haproxy

​
2. Configure Filebeat module

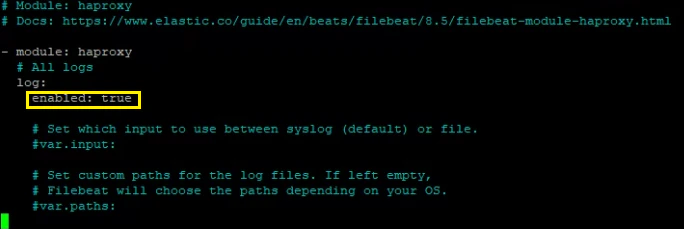

Configure the module configuration file according to the image below. You can find it in the path:
Linux
/opt/utmstack-linux-agent/beats/filebeat/modules.d/haproxy.yml
Windows
C:\Program Files\UTMStack\UTMStack Agent\beats\filebeat\modules.d\haproxy.yml
HaProxy
Important!! After a Filebeat module is enabled, the service needs to be restarted using the following command:
Linux
sudo systemctl restart UTMStackModulesLogsCollector
Windows
sc stop UTMStackModulesLogsCollector && timeout /t 5 && sc start UTMStackModulesLogsCollector
Depending on how you’ve installed Filebeat, you might see errors related to file ownership or permissions when you try to run Filebeat modules. See Config File Ownership and Permissions
